DANNOVO China Sony EVI D70P Video Conference Camera SONY FCB48 PTZ 18X Optical Zoom(DN-C048)
Main Features
DANNOVO China Sony EVI D70P Video Conference Camera SONY 18X Optical Zoom PTZ(DN-C048):
Product Overview:
DN-C048 is a color video communication camera which designed for video conferencing business, adopt SONY 18X optical zoom lens, built-in high speed PTZ, making users can see tiny or long distance objection clearly. Integration design, refined aesthetic shape, operation smoothly, without noise, accurate location, high reliability and long-term stability Run, no need for maintenance. Use RS232 multi protocol communication, desktop and ceiling mount at the same time, qualified for video conferencing , CCTV remote monitor, etc.
Main Application:
Widely used in video conferencing, remote teaching, remote medical, church, accident, court, multimedia, chain store, transportation, airport and other monitor area.
DANNOVO China Sony EVI D70P Video Conference Camera Features:
> Integration design, refined aesthetic shape
> Build-in SONY 18x module
> 216X zoom (18x optical X 12x digital Zoom)
> Adopting precision & constant speed step motor drive, outstanding agile, precise location(±0.1°)
> 360 degrees Pan, 210 degrees Tilt
> The Maximum horizontal rotation speed:80°/S;The Maximum vertical rotation speed:60°/S
> 9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off
> VISCA and Pelco P/D protocol can be selected by code switch
> Enter in and out menu by remote commander directly
> 254 address settable (7 camera setting synchronously Via VISCA)
> Multiple control: support IR remote control, RS-232C,RS-422/485 control
> Video output: CVBS &S-VIDEO
> Desktop and ceiling mount
> Information Feedback auto remind
> Preset positions autocorrect
 |
 |
 |
|
 |
|||
Sony EVI D70P Video Conference Camera Model |
DN-C048 |
| Image Sensor | SONY 1/4 Exwave HAD CCD |
| Effective Pixel | 752 (H) x 582 (V) |
| Signal System | NTSC/PAL |
| Horizontal Resolution | 650 TVLine |
| Synchronization | Internal & External |
| Lens | 18x Optical X 12x Digital Zoom, F=4.1mm(tele)～73.8mm(wide)，F1.4～F3.0 |
| Angle of View (H) | 48°(wide-angle)～2.8°(far-end) |
| Min. object distance | 290mm(wide-angle)～800mm(far-end) |
| Minimum Illumination | 0.4lux (F1.4, 50IRE) |
| Auto exposure | Auto/Manual/AE priority, exposure compensation, backlight compensation |
| Shutter Speed | 1/3～1/10000S,22 shelves |
| Gain | Auto/Manual (-3 ~ +28dB, 2 dB step) |
| White Balance | Auto/ATW/Indoor/Outdoor/One push WB/Manual WB |
| S/N Ratio | more than 50dB |
| Pan/Tilt | Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s) |
| Preset Position | 9 by remote commander, 256 by keyboard controller |
| Picture effect | E-Flip, Invert, Mirror |
| Analog Output | VIDEO and S-VIDEO VBS 1.0VP-P |
| Camera Control | RS-232C, RS-422/485(VISCA and PELCO-P/D Protocol) |
| Baud rate | 9600bps, 38400bps |
| Power | 10.8V～13.2V |
| Operating Temperature | 0℃～50℃ |
| Storage Temperature | -20℃～+60℃ |
| Consumption | 12W |
| Dimensions | (L)153×(W)×134×(H)×153mm |
| Weight | 1200g |
| Color | black |

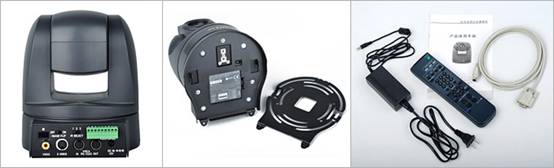

| Supplied accessories | 12 DV AC power adapter，IR controller，RS232C wire, Ceiling bracket, Operation menu |
