Product Name:
DANNOVO Camera For Video Conference,Sony Module PTZ 18x Optical Zoom Support S-Video Output,VISCA,Image Auto-Flip Function(DN-C07)
Products of same series:
Main Features
DANNOVO Camera For Video Conference,Sony Module PTZ 18x Optical Zoom Support S-Video Output,VISCA,Image Auto-Flip Function(DN-C07):

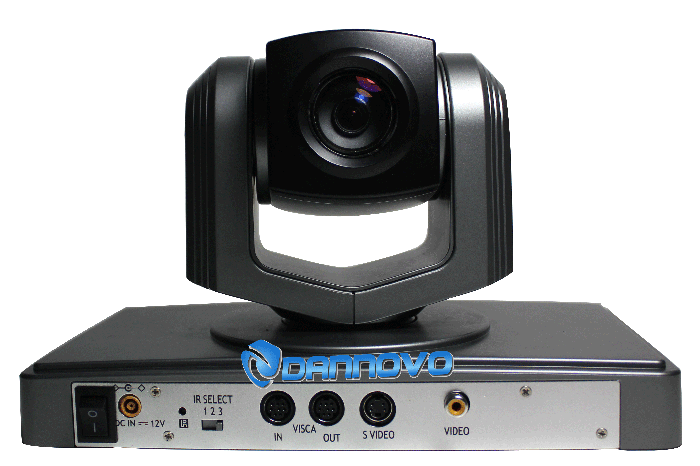

DANNOVO PTZ Camera For Video Conference:
>Adopting 1/4 Exview CCD Sensor;
>CCD 550TVLine;
>Sony Module;
>18xOptical X 12x Digital Zoom(216xZoom);
>Sony Module and China18x 650TVLine Module Optional(China18x Module Doesnt support Image Auto-Flip);
>Support S-Video Video Output Mode;
>Focal Length:f=4.1-73.8mm F1.4-3.0;
>Support Image Auto-Flip Function;
>Pan/Tilt Rotation Angle:Horizontal 360 degree,Vertical:125 degree;
>Pan Speed:1-200degree/s;Tilt Speed:1-150degree/s;
>PTZ Controlling Protocol:PELCO-D, VISCA;
>Remote Controller for controlling PTZ,Zoom,Preset Position and OSD etc.
Optional Model:
DN-C07B China Module: 18x Optical Zoom,650TVLine,CVBS Interface.
 |
 |
 |
|
 |
|||
Camera For Video Conference Model |
DN-C07 | ||
| Image Sensor | Sensor | 1/4" Exview CCD | |
| Signal System | PAL/NTSC | ||
| Illumination | 1.0Lux/F1.4 | ||
| White Balance | Auto/Manual | ||
| Gain Control | Auto | ||
| Back-light compensation | On /Off | ||
| E-Shutter | 1 - 1/100,000s | ||
| Horizontal Resolution | 550TVLine | ||
| S/N Ratio | >50db | ||
| Lens | Focus | f=4.1-73.8 F1.4 -3.0 | |
| Iris | Auto/Manual | ||
| Zoom | Sony 18x Optical X12x Digital Zoom | ||
| Video Output | VBS: 1.0Vpp at 75 Ohm, S-Video | ||
| Control Decoder | Built-in decoder | ||
| Communication Interface | EIA/RS422, EIA/RS232（Bidirectional） | ||
| PTZ Control Protocol | VISCA,PELCO-D | ||
| Baud Rate | 9600/38400bps | ||
| Patrol Lines | 4 Patrol Lines | ||
| Preset Position | 9 / 255 Preset Position | ||
| Power-off Protection | Saved scanning or patrol line settings Automatically Before power off | ||
| Speed Matching | Slow down camera Pan/Tilt movement speed while camera zooming in | ||
| OSD Menu | To change parameters of camera or camera module from OSD Menu | ||
| Image Auto Flip | Image Auto Flip | ||
| Pan Speed | 1-200 degree per second | ||
| Tilt Speed | 1-150 degree per second | ||
| Pan Rotation Angle | 360 degree continuously | ||
| Tilt Rotation Angle | 125 degree | ||
| Auto Pan Scan | Support auto pan scanning | ||
| Boundary Scan | 0-359 degree (programmable) | ||
| Remoter Control | IR wireless remote controller P/T/Z | ||
| Power Supply | DC12V±10%, 1.2A | ||
| Working Temperature | 0-50℃ | ||
| Environment Humidity | 0-95%RH | ||
