DANNOVO Outdoor Wireless IP Camera,HD 1080P 2.0 MegaPixel IR Waterproof,Support Low Illumination,Onvif,SD,Two-way Audio(DN-H09-MPC-TD-WS)
Main Features
DANNOVO Outdoor Wireless IP Camera,HD 1080P 2.0 MegaPixel IR Waterproof,Support Low Illumination,Onvif,SD,Two-way Audio(DN-H09-MPC-TD-WS):
DN-H09-MPC-TD-WS series IP Cameras are 1080P 2.1 megapixel high definition outdoor waterproof HD IR box IP cameras,
it uses 1/3" Progressive Scan CMOS sensor and advanced H.264 codec,
it support various definition like 1920*1080 and dual streaming.
It built-in fixed focus lens and 4 big infrared LED lights, support day/night auto converting.

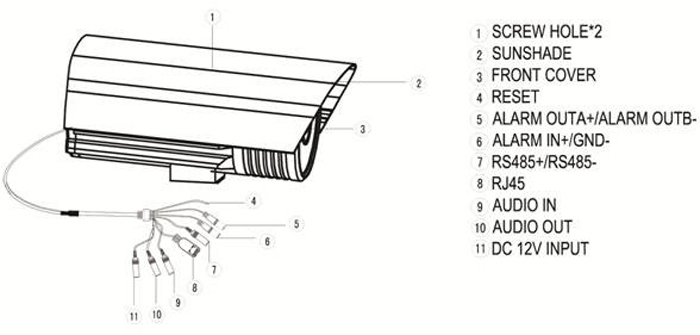

It own audio, alarm, RJ45, SD card, WiFi and so on interfaces.
This camera use perfect waterproof housing which meet IP66, its suitable to use for outdoor or indoor surveillance scence without low light.
It can be used to various industies like port, trafic, shool, building, and bank.
It support FTP, RTSP, DDNS, PPPoE, DHCP, SMTP, POP3, VPN, DDNS and so on network protocols.
It support ONVIF (Open network video interfaces form) standard, its easy to compatible with other third-party video management software.
Outdoor Wireless IP Camera(HD 1080P 2.0 MegaPixel Waterproof) Features:
1/3" Progressive Scan CMOS Sensor,Total pixels 2.0M，Min.Illumination:Color Mode:0.1Lux@（F1.2 AGC ON）;B/W Mode:0Lux@（F1.2 IR ON）,Video Compression:H.264MainProfile、Dual Stream、Maximum resolution:1920X1080,IR distance 50m,dual IR-Cut filter,Focal Length:5-15mm,Built-in Wifi Module.
> 1/3" 2.0 Megapixel Progressive Scan CMOS sensor.
> Support 1920x1080, 25fps/30fps
> Support Color/BW mode converting (dual IR-Cut filter).
>Support Wireless 802.11b/g/n.
> Built-in 5-15mm varifocal lens.
> 4 pieces high power infrared LED light, the distance up to 30 meters.
> H.264/MJEG is optional, dual streaming, low bandwidth, and high quality.
> Support AWB, natual color, clear image.
> Build in 1 channel audio input and audio output ports, support realtime audio capture and two-way talking.
> Built-in SD card slot, support SDHC card.
> Water and Dust Resistance: IP66.
> Support protocals: RTSP,RTP,HTTP,TCP/IP,UDP,SMTP,PPPoE,DDNS,DNS,SNTP,DHCP,FTP.
> Support pravicy zone mask (max 4 individal mask zone).
> Alarm recording: video lost, motion detection and sensor alarm.
> Built-in Web server enables the use of a standard Web browser for viewing and management.
 |
 |
 |
|
 |
|||
Outdoor Wireless IP Camera Model |
DN-H09-MPC-TD-WS | |||||
| Hardware | ||||||
| Network chip | Lan | Realtek 10/100M BASE-TX Self-adapting | ||||
| Sensor | 1/3" Progressive Scan CMOS | |||||
| Effective Pixels | 1920(H)×1080(V) | |||||
| Min.Illumination | Color Mode:0.1Lux@（F1.2 AGC ON）;B/W Mode:0Lux@（F1.2 IR ON） | |||||
| S/N | ≥50db(AGC OFF) | |||||
| Day/night | Auto，withICR | |||||
| IR Parameters | 4 IR LEDs,IR distance 15-35m | |||||
| Auto Electronic Shutter | 1/25—1/100000sec，Slow shutter:1/2,1/4,1/8,1/12 | |||||
| Interfaces | ||||||
| Optical lens | Interfaces | Φ14 | ||||
| Lens | Auto Iris | |||||
| Focal Length | 5-15mm | |||||
| Audio Talkback | 1 channel MIC input, External access, 3.5 mm audio interface | |||||
| Audio Output | 1 channellinear output, 3.5 mm audio interface | |||||
| Storage Interface | SD card supports video storage and image snapping; SD2.0 standard,maximum storage 32G | |||||
| Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector | ||||
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS485 interface | |||||
| Audio video encoding | ||||||
| Video Compression | H.264 Main Profile； MJPEG/JPEG Baseline | |||||
| Resolution | Master Streaming | 1920*1080,1-25(30)fps/sec 1280*960,1-25(30)fps/sec 1280*720,1-25(30)fps/sec | ||||
| Second Streaming | 640*480，1-25fps/sec 320*240，1-25fps/sec 160*112，1-25fps/sec | |||||
| Video Bitrate | 32Kbps～16Mbps,Supports CBR/VBR | |||||
| Title OSD | Supports channel name, date, and video stream information overlay;OSD location is adjustable | |||||
| Audio Compression | G.711 | |||||
| Data transmission and storage | ||||||
| Data storage | Video and Image | |||||
| Recording | Recording set up to record by motion trigger,alarm trigger, manual, or schedule | |||||
| Alarm Output | FTP、E-mail, Explorer, Software | |||||
| Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |||||
| Wireless protocols | 802.11b/g/n、Supports WEP,WPA,WPA2 | |||||
| ONVIF protocol | Support | |||||
| Remote View | Computer | IE 6.0 or up, max 10user | ||||
| Mobile Phone | Windows Mobile,Symbian,iPhone,Android | |||||
| General Parameters | ||||||
| Operating Temperature | -10℃ - +55℃ | |||||
| Operating Humidity | 0% - 90% | |||||
| Power | DC12V | |||||
| Power Consumption | 15W(MAX) | |||||

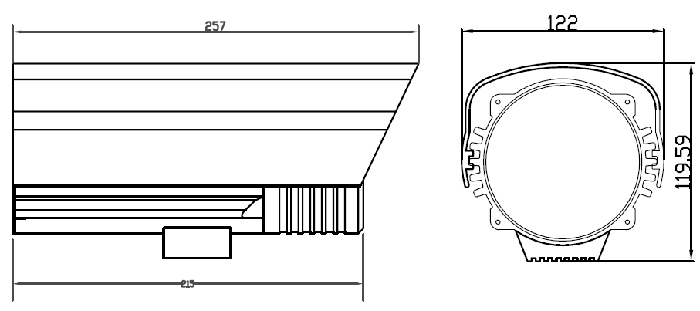

| Dimension | 257(L) *122（W）*120(H)mm | |||||
| Weight | 1.8KG | |||||
