DANNOVO Vandal-Proof High Definition 1080P 2.0Mega Pixels IR Surveillance IP Camera+Low Illumination,Onvif(DN-H12-MPC-TD-IR)
Main Features
DANNOVO Vandal-Proof IR High Definition 1080P 2.0Mega Pixels Surveillance IP Camera IP65, Low Illumination,Onvif Protocal,SD card Storage and Two-way Audio(DN-H12-MPC-TD-IR):
Optional Modules:
DN-H12-MPC-TD: Without IR Leds Type; DN-H12-MPC-TD-IR: With IR Leds and IR-Cut Filter; DN-H12-MPC-TD-POE: Built-in PoE Module and Without IR Leds Type; DN-H12-MPC-TD-IR-POE: Built-in PoE Module and With IR Leds and IR-Cut Filter; DN-H12-MPC-TD-ICR-POE: Built-in PoE Module and With IR-Cut Filter.
DN-H12-MPC-TD-ICR: With IR-Cut Filter;
IP65 Vandal-Proof HD 1080P Surveillance IP Camera Features:
1/3" Progressive Scan CMOSsensor ,Total pixels 2.0M，Min.Illumination:Color Mode:0.1Lux@（F1.2 AGC ON）;B/W Mode:0Lux @(F1.2，IR ON)、Video Compression:H.264MainProfile，Dual Stream，Maximum resolution:1920*1080，IR Parameters:21 IR LEDs,IR distance 15m,Dual IR-Cut filter,Vandal- proof Shell
> 1/3" Progressive Scan CMOS sensor ;
> Support 1920X1080 25fps,high definition;
> 21 infrared LED light, the distance up to 15meters;
> Support Color/BW mode converting (dual IR-Cut filter);
> Built-in 2.8-12mm manual varifocal lens;
> H.264/MJEG is optional, dual streaming, low bandwidth,high quality;
> Support AWB, natual color,clear image;
> Build in 1 channel audio input and audio output ports, support realtime audio capture and two-way talking Audio;
> Support analog Video surveillance output,BNC connector;
> Built-in SD card slot, support SDHC card;
> Support protocals: RTSP,RTP,HTTP,TCP/IP,UDP,SMTP,PPPoE,DDNS,DNS, SNTP,DHCP,FTP;
> Support pravicy zone mask (max 4 individal mask zone);
> Alarm recording: video lost, motion detection and sensor alarm;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> Vandal-resistant design, vandal-resistant casing;
> DC12V/PoE power supply (options) .
 |
 |
 |
|
 |
|||
High Definition 1080P IR Surveillance IP CameraModel |
DN-H12-MPC-TD-IR / DN-H12-MPC-TD-IR-POE | |||||
| Hardware | ||||||
| Network chip | Lan | Realtek 10/100M BASE-TX Self-adapting | ||||
| Sensor | 1/3" Progressive Scan CMOS | |||||
| Effective Pixels | 1920(H)×1080(V) | |||||
| Min.Illumination | Color Mode:0.1Lux@（F1.2 AGC ON）;B/W Mode:0Lux @(F1.2，IR ON) | |||||
| S/N | ≥50db(AGC OFF) | |||||
| Day/night | Auto,dual IR-Cut filter | |||||
| IR Parameters | 21 IR LEDs,IR distance 15m | |||||
| Auto Electronic Shutter | 1/25—1/100000sec，Slow shutter:1/2,1/4,1/8,1/12sec | |||||
| Interfaces | ||||||
| Optical lens | Interfaces | Φ14 | ||||
| Lens | Manual zoom | |||||
| Focal Length | 2.8-12mm | |||||
| Audio Talkback | 1 channel MIC input, External access, 3.5 mm audio interface | |||||
| Audio Output | 1 channel linear output, 3.5 mm audio interface | |||||
| CVBS video output | 1 channel ,BNC connector | |||||
| Storage Interface | Micro SDHC card supports video storage and image snapping; SD2.0 standard,maximum storage 32G | |||||
| Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector | ||||
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS232 interface | |||||
| Audio video encoding | ||||||
| Video Compression | H.264 Main Profile； MJPEG/JPEG Baseline | |||||
| Resolution | Master Streaming | 1920*1080,1-25(30)fps/sec 1280*960,1-25(30)fps/sec 1280*720,1-25(30)fps/sec | ||||
| Second Streaming | 640*480,1-25fps/sec 320*240,1-25fps/sec 160*112,1-25fps/sec | |||||
| Video Bitrate | 32Kbps～16Mbps,Supports CBR/VBR | |||||
| Title OSD | Supports channel name, date, and video stream information overlay;OSD location is adjustable | |||||
| Audio Compression | G.726,G.711A,G.711U,AAC,support 32 K stereo | |||||
| Data transmission and storage | ||||||
| Data storage | Video and Image | |||||
| Recording | Recording set up to record by motion trigger,alarm trigger, manual, or schedule | |||||
| Alarm Output | FTP、E-mail, Explorer, Software | |||||
| Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |||||
| Wireless protocols | / | |||||
| ONVIF protocol | Support | |||||
| Remote View | Computer | IE 6.0 or up, max 10user | ||||
| Mobile Phone | Windows Mobile、Symbian、iPhone, Android | |||||
| General Parameters | ||||||
| Vandal- proof capacity | 1 ton impact | |||||
| Operating Temperature | -10℃ - +55℃ | |||||
| Operating Humidity | 0% - 90% | |||||
| Power | DC12V/POE(IEEE 802.3af)(Optional) | |||||
| Power Consumption | 9W(MAX) | |||||

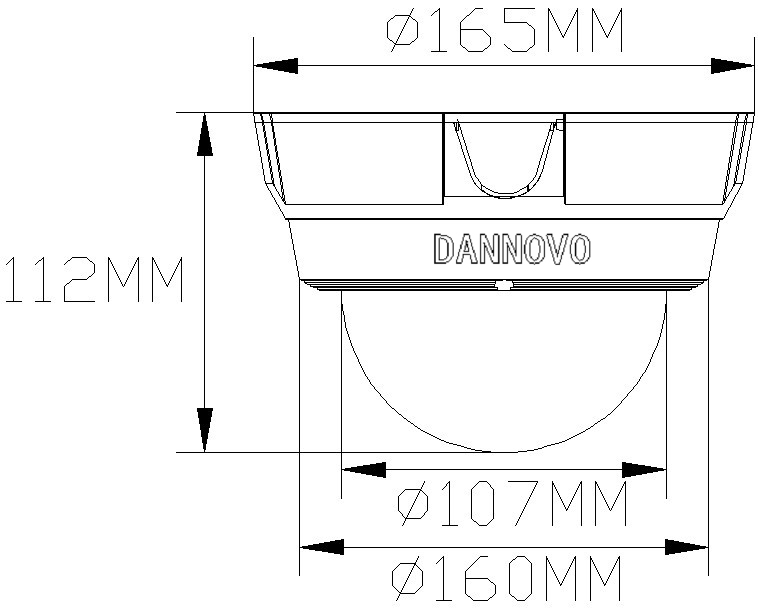

| Dimension | 112(H) * Φ165mm | |||||
| Weight | 1.5kg | |||||
