DANNOVO HD 1080P/60 Ypbpr,HD-SDI,HDMI Video Conference Camera,2 Megapixel,PTZ 10X Optical Zoom(DN-HDC11)
Main Features
DANNOVO HD 1080P/60 Ypbpr,HD-SDI,HDMI Video Conference Camera,2 Megapixel,PTZ 10X Optical Zoom(DN-HDC11):
Main Application:
Widely used in video conferencing,Remote Teaching,Remote Medical,Church,Accident,Court,Multimedia,Chain Store,Transportation,Airport and other monitor area.
DANNOVO HD 1080P/60 Ypbpr,HD-SDI,HDMI Video Conference Camera Features:
> Ypbpr,HD-SDI,HDMI Multi HD high quality Video Output;
> China 10x Optical Zoom;
> Video Format:1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25, PAL/NTSC;
> Two Mega pixels CMOS image sensor;
> Wide area, quiet, fast Pan/Tilt , shooting;
> New step motor with peace and fast operation,can move to appoint angle quickly and have a wide area shooting;
> Pan/Tilt degree:H:0~355o,V:120o;
> Pan/Tilt Speed(P: 80°/ S T:60°/s) ;
> RS232C, RS422/485 remote control(VISCA, PELCO-P/D Protocol);
> Using RS422(VISCA) interface, we can set camera pan, tilt, zoom and other operation;
> Super wide angle（65°）;
> New wide-angle lens with a wide Angle image capture, the best choice of small or medium meeting room;
> 9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off;
> VISCA and Pelco P/D protocol can be selected by code switch;
> Enter in and out menu by remote commander directly;
> Multi function Remote control.
 |
 |
 |
|
 |
|||
Ypbpr,HD-SDI,HDMI Video Conference Camera Model |
DN-HDC11 |
| Image Sensor | 1/2.5 type CMOS |
| Effective Pixels | Approximately 2Mega pixels(16:9) |
| Signal System | 1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50, |
| 720p/60,720p/50,720p/30,720p/25, PAL/NTSC | |
| Horizontal Viewing Angle | 65° |
| Focus system | Auto/Manual |
| Lens | 10x optical zoom f = 4.5 to45mm, F1.8 to F2.1 |
| Min. object distance | 10-800mm |
| Minimum Illumination | 6Lux(F1.8,50IRE) |
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
| Shutter Speed | 1/5～1/4000S |
| Gain | Auto/Manual (-3 ~ +18dB) |
| White Balance | Auto/ Indoor/Outdoor/One push Auto/Manual |
| S/N Ratio | 50dB |
| Pan/Tilt | Pan: +/- 355° (max. speed: 80°/s) Tilt: 120° (max. speed: 60°/s) |
| Preset Position | 9 by remote commander,255 by keyboard controller |

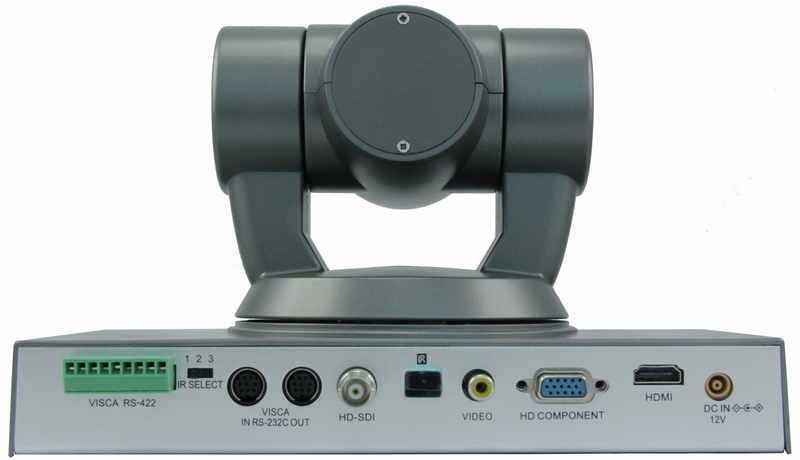

| Video Output | HD-SDI,HDMI, HD analog component (YPbPr), VIDEO(AV) |
| Camera Control Interface/Protocol | RS232C, RS422/485 with VISCA, PELCO-P/D Protocol |
| Power | 10.8V～13.0V |
| Operating Temperature | 0℃～50℃ |
| Storage Temperature | -20℃～+60℃ |
| Consumption | 12W |
| Dimensions | (L)244×(W)158×(H)156mm |
| Weight | 1300g |
| Color | Silver gray |

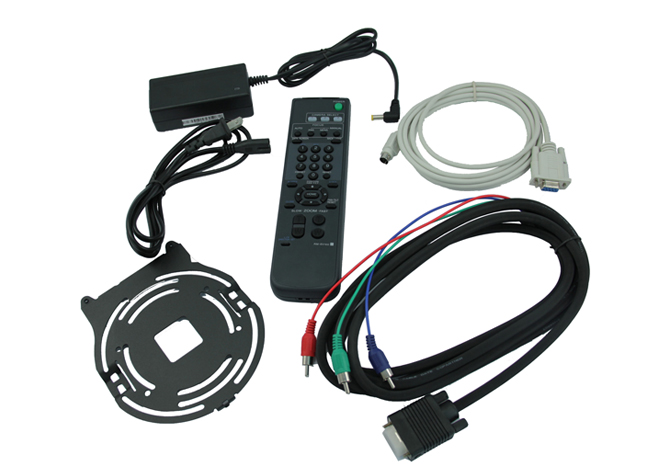

| Supplied accessories | DC 12V power adapter，IR controller，Component cable, RS232C wire, Operation menu |
