DANNOVO Full HD PTZ Video Conferencing Camera 20x Optical Zoom,1080P 60 Real Time, HD-SDI,DVI,HDMI,Ypbpr,AV Outputs,Lowest Cost(DN-HDC20MI-CN)
Main Features
DANNOVO Lowest Cost Full HD PTZ Video Conferencing Camera 20x Optical Zoom,1080P 60 Real Time, HD-SDI,DVI,HDMI,Ypbpr,AV Outputs,Sony VISCA, PELCO Protocol(DN-HDC20MI-CN):
Full HD PTZ Video Conferencing Camera Features:
>Support Full HD 1080p/60 Video Output;
>China 20x Optical Zoom;
>Adopting 1/2.8 CMOS 2.0 Megapixel Sensor;
>Video Format:1080P/60,1080P/50,1080P/30, 1080P/25, 1080i/60, 1080i/50, 720P/60, 720P/50, 720P/30, 720P/25, PAL/NTSC;
>Field of View: 70.96°(W)~4°(T), Focal Length: f=4.7-94MM F1.6-3.5;
>Support Image Flip Function;
>Pan/Tilt Rotation Angle: Horizontal 355 degree, Vertical 135 degree;
>Pan Speed:1-200 degree/s; Tilt Speed: 1-150 degree/s;

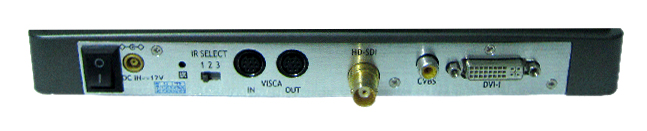

>Support HD-SDI, YpbPr ,DVI, DVI-HDMI, and AV (CVBS) Video Output;_DVI and Ypbpr port in One output;
>PTZ Controlling Protocol: VISCA,Pelco-D;
>Remote Controller for controlling PTZ, Zoom, Preset Position and OSD etc.
>Desktop and Ceiling Mount, Wall Mount optional.
Main Application:
Widely used in Video Conferencing, Remote Teaching, Traning Meeting, Remote Medical, Church, accident, Court, Multimedia etc.
 |
 |
 |
|
 |
|||
| Model No. | 20X 1080P 60 Real Time,Full HD PTZ Video Conferencing Camera DN-HDC20MI-CN | |
| Image Sensor | Sensor | 1/2.8’’,2.0 Mega CMOS Sensor |
| Effective Pixels | 2.0 Megapixel | |
| Illumination | 0.5 Lux(F1.6,ICR ON) | |
| White Balance | Auto/Manual | |
| Gain Control | Auto | |
| Back-light compensation | On / Off | |
| E-Shutter | 1/1~1/10000S | |
| S/N Ratio | > 50db | |
| Lens | Focus | F=4.7-94.0mm F1.6-3.5 |
| View Angle | 70.96°(W)~4°(T) | |
| Iris | Auto/Manual | |
| Zoom | China 20x Optical Zoom | |
| HD Video Output | HD-SDI, YpbPr ,DVI, DVI-HDMI | |
| SD Video Output | CVBS (AV) | |
| Video Output Mode | 1080P/60, 1080P/50,1080P/30,1080P/25,1080I/60，1080I/50,720P/60,720P/50,720P/30,720P/25, PAL/NTSC | |
| Communication Interface | EIA/RS232C (Bidirectional) | |
| Communication Control Protocol | PELCO-D,VISCA | |
| Baud Rate | 9600/38400bps | |
| LCD Display Screen (Option) | Display the Camera Working Status: Protocol, Baud Rate, Address Code, etc | |
| Tour | 4 Line | |
| Preset POSTION | 64 | |
| Power-off Protection | Saved scanning or patrol line settings Automatically Before power off | |
| Speed Matching | Slow down camera Pan/Tilt movement speed while camera zooming in | |
| OSD Menu | To change parameters of camera or camera module from OSD Menu | |
| Image Flip | When tilt movement over 90 degree(Option) | |
| Pan Speed | 1-200 degree per second | |
| Tilt Speed | 1-150 degree per second | |
| Pan Rotation Angle | 0~355 degree | |
| Tilt Rotation Angle | 125 degree | |
| Auto Pan Scan | Support | |
| Boundary Scan | 0-359 degree (programmable) | |
| Remote Controller | IR wireless control P/T/Z | |
| Dimensions | 250x140x154mm | |
| Weight | 1380g | |
| Power Supply | DC12V±10%,2A | |
| Working Temperature | 0-50℃ | |
| Environment Humidity | 0-95%RH | |
